• Glass hob
  • 3 burners
  • EPS burner
Full fire power, cook unlimited delicacy
Product Details
High heat is sufficiently high, low heat is sufficiently steady to allow cooking at will. Patented Jet Collision Technology, with a thermal efficiency of more than 60%. High-efficiency super firepower, saving time, gas, and money.
12 safety protections Multi-protection from the inside out, safe cooking guaranteed
Easy to clean, worry free * Explosion-proof glass panel, smooth and easy to clean
* 1° tilt design allows liquid outflow easily
* Portable cleaning, double handle design, easy to take, faster and more convenient to clean residue;
* Chamfer design, liquid tray chamfer design, easier to clean
Rapid ignition, no need to keep pressing, fast and precise ignition in 0 second
Technical Parameters
  • Certification: CE,SAI,PSB,ETL
  • Product Size (mm)(W×D): 860X500
  • Built-in Size (mm)(W×D): 816X460
  • Gas Type: LPG/PUB
  • Gas Pressure (Pa)/Voltage: 2800/2000/1000
  • Heating Load: L:4.85 M:1.75 R:4.85
  • Cooking Area Silk Screen Diameter(mm): /
  • Knob: cylindrical bakelite knob
  • Grate: cast iron/flat steel
  • Net Weight (kg): 18
  • Gross Weight (kg): 20
  • Carton Size (mm): 910X545X210

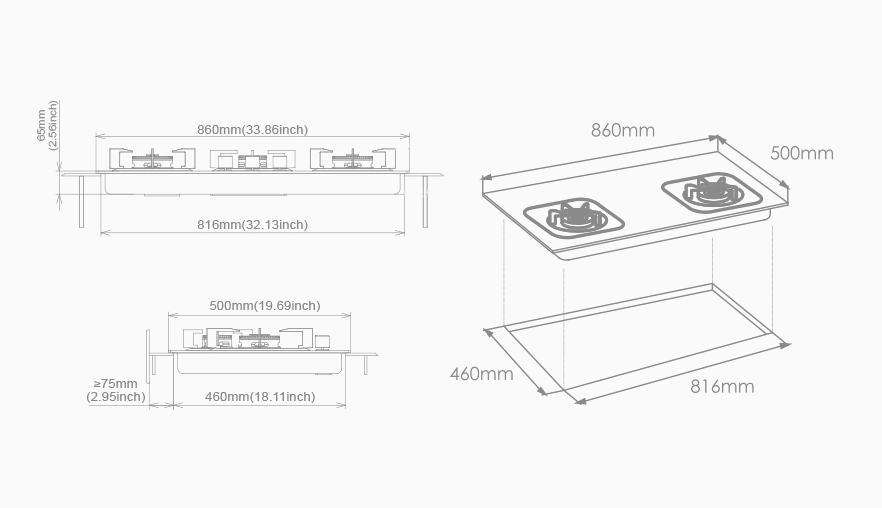

Installation Diagram
Wind tunnel installation ceiling installation diagram (unit: mm)
Kitchen Scene
